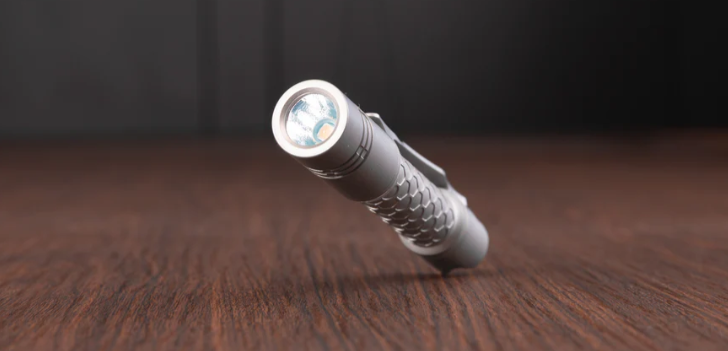

Titanium Inspection Pocket Light - Programming Function
- Entering Configuration Mode:
-From OFF, half-click/tap the tail switch 10 times and hold the tailcap button in the 10th time & keep holding until you get to your desired menu option.
When the configuration mode is entered:
The light will:
flash once, then will strobe quickly (Mode group selection)
flash twice, then will strobe quickly (Memory mode on-off toggle)
flash three times, then will strobe quickly (Moonlight mode off-on toggle)
blink four times, then it will strobe quickly (Mode order toggle)
blink five times, then it will strobe quickly (Factory reset)
This flashing sequence continues twice if a selection is not chosen.
*The number of slow flashes indicates the configuration menu number to be changed. These options are shown below
* Selecting menu options: Let Go & Hold The Button In during any of the strobes following the slow flashes to select the configuration option.
E.g. You want to change the memory mode (Option 2) :
From OFF, half-press the tailcap 10 times & hold in on the 10th press. While still holding in wait for the light to do the 2 slow flashes, after these two slow flashes, the light will strobe. During this strobe, you want to let go of the tailcap button & press it back in. After doing so you can now let go. You've now either turned memory mode on or off.
-Here are the configuration options:
1. Mode group selection
(After entering this menu, the light will flash 4 times. The number of flashes indicates the number of mode groups.)
The 1st blink --------- Group1: (Moonlight)-2%-20%-100%
The 2nd blink -------- Group2: (Moonlight)-10%-40%-100%
The 3rd blink -------- Group3: (Moonlight)-2%-10%-50%
The 4th blink -------- Group4: (Moonlight)-50%-100%-strobe-SOS
*Let Go & Hold The Button In during any blinks to select the mode group.
*After selecting the mode group, you can Let Go & Hold The Button In to select the brightness mode.
2. Memory mode on-off toggle (default off)
To turn memory mode on, Let Go & hold The Button on the tail switch during the quick flashes after the second slow flash.
*To turn off the memory mode, reenter the configuration mode and repeat the instruction above.
3. Moonlight mode off-on toggle (default on)
To turn the moonlight off, Let Go & Hold The Button In during the quick flash after the third blink.
*Repeat to turn the moonlight on.
4. Mode order toggle (default LMH)
To change the mode order from Low -> Medium -> High to High -> Medium -> Low, Let Go & hold The Button on the tail switch during the quick flash after the fourth blink.
*Repeat to reverse the order.
For example, the default mode order of group 1 is (Moonlight)-2%-20%-100%, if you change the mode group to HML, the mode ORDER of group 1 will be (Moonlight)-100%-20%-2%
5. Factory reset
Let Go & Hold The Button In the tail switch during the quick flash after the fifth blink to reset all options to their original states.
